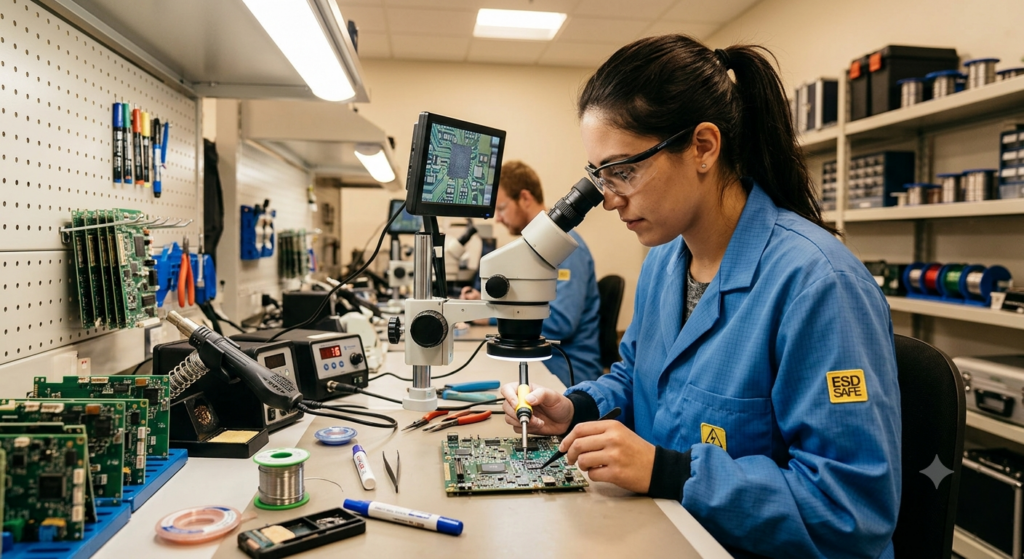

IPC 7711 – Electronic Assemblies Solder Rework Skills Training

In a perfect manufacturing world, every assembly would come off the line flawlessly. However, in reality, defects happen. When a high-value Printed Circuit Board (PCB) fails inspection, companies face a critical choice: scrap it and lose the investment, or rework it to perfection.

This is where the IPC-7711 Rework of Electronic Assemblies training becomes indispensable. It provides the technical “surgical skills” required to remove and replace components without damaging the board or surrounding parts. In an era where components are smaller and boards are more complex, “guessing” at rework is a recipe for disaster. Professional IPC-7711 training ensures that your rework is indistinguishable from the original assembly.

What is IPC-7711?

While IPC J-STD-001 is about building it right the first time, IPC-7711 is the industry standard for Rework. It provides the proven methodologies for removing and replacing soldered components—ranging from basic through-hole parts to complex Surface Mount Technology (SMT) components  like BGAs and QFPs. It is the definitive guide for restoring a board to its original functional specification.

Course Objectives: What You Will Master

This intensive skills-based program at OTC Training Centre Sdn Bhd focuses on precision, repeatability, and safety. By the end of this training, participants will be able to:

• Navigate the IPC-7711 Standard: Understand the procedural guidelines and requirements for successfully reworking electronic assemblies.
• Master Component Removal: Learn the specific thermal profiles and tools required to safely remove components without causing “pad lifting” or thermal damage to the PCB.
• Precision Re-Soldering: Apply advanced techniques to re-install components that meet the original assembly’s “target” conditions.
• Handle SMT & Through-Hole Rework: Develop specialized skills for various component types, including discrete chips, SOICs, and PLCCs.
• Utilize Professional Rework Tools: Gain proficiency in using specialized equipment such as desoldering stations, hot air tools, and precision soldering irons.
• Validate Quality: Learn how to inspect reworked joints to ensure they comply with IPC-A-610 acceptability standards.

Training Methodology: A Skills-First Approach

Rework is an art form backed by science. At OTC Training Centre Sdn Bhd, we use a hands-on methodology to ensure participants develop real “muscle memory”:

• Interactive Technical Lectures: Understanding the thermal dynamics of a PCB and the risks of improper rework.
• Intensive Hands-On Practice: The majority of the course is spent at the workbench, practicing component removal and replacement on actual assemblies.
• Visual Best Practices: Multimedia presentations showing “gold standard” rework sequences.
• Expert Feedback: Real-time correction and guidance from trainers with years of industrial rework experience.

Why This Training is Essential for Your Business

The ability to perform professional rework is one of the most effective ways to improve a company’s bottom line.

1. Massive Cost Savings: High-value boards that would otherwise be scrapped can be saved and shipped.
2. Sustainability: Reducing electronic waste by repairing instead of discarding.
3. Customer Confidence: Proving to clients that even if a defect occurs, your team has the certified skill to fix it to the highest global standard.
4. Protecting Component Integrity: Improper rework often “cooks” nearby components. This training teaches how to isolate heat and protect the rest of the board.

Why Choose OTC Training Centre Sdn Bhd?

As a top-tier Training Provider (TP) in Malaysia, OTC is uniquely equipped to deliver IPC-7711 training. Rework is a high-dexterity skill that cannot be learned from a book. Our trainers bring extensive industrial exposure, teaching your team the “tricks of the trade” that ensure a 100% success rate in PCB recovery.

Plus, as an HRD Corp claimable program, OTC makes it easy for you to upskill your technicians and operators while optimizing your training budget.
